CHARATERS

The supporter secondary ascending and pincer sliding system canprevent the vamp from cracking.
The adjustment for the third section pincers save more time on put
the shoes in order according to their size.
Every pincer can adjust its relevant position and auto-balancefunction according to the shoe types.
The left and right leg of the pincer fixed plates and crown and padcan exchange automatically.
The auto-coating system can be selected to assist the binder andwiper system.

Parameter

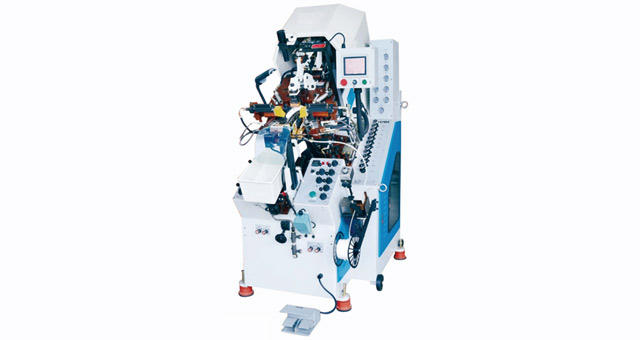

Model:DY-747MA/MB
Mechanical dimension:1960x1050x2000mm
Packing size:2060x1150x2200mm
Net weight:1100kgs
Gross weight:1350kgs
Power:3kw
Output:2000pairs/8hours
