Function features

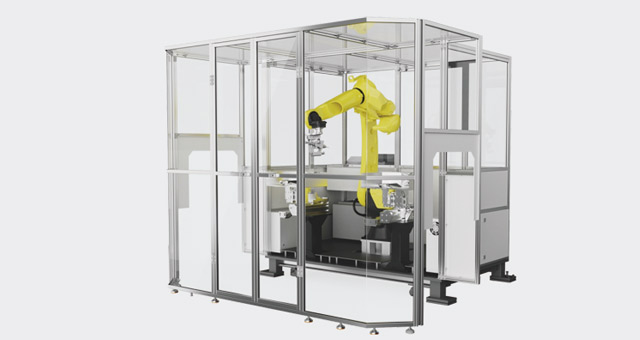

Equipped with the high-precision imported six-axis robotthe specially developed fixture and the imported spray gun, it ismainly used for glue spraying on the upper of sports shoes,leather shoes,and protective shoes.The glue is more evenlysprayed than man-made.The straight glue line ensures theeven adhesion force,without wire drawing or spilling. Reducechemical intake to worker, the dependence on skilled workerand the pressure of labor shortage. Environmental protection,improve efficiency and quality.The special-made glue is noteasy to block the gun and no need to scribe line thus savinglabor cost.

Parameter

Model:DY-618
Output:120-150prs/h
Robot:FANUC、ABB
Dimension:L2600*W1470*H2200mm
Accuracy:+/-0.5mm
Voltage:220/380V 50/60Hz  3Kw
Airpressure:0.6MPA
Configuration:15inch touch screen
