Function features

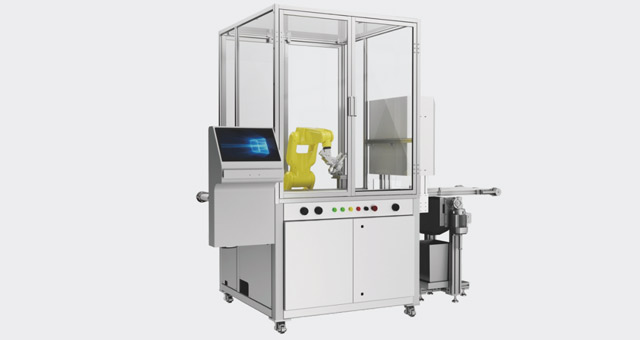

Using high-precision imported six-axis robot, equipped with speciallydeveloped fixture and imported spray gun (regular primer), the corrosion-resistant spray gun and glue pot(rubber primer added with B powder, the self.developed patented product), it is suitable for same outsole of different materialrequirements. By the high precision 3D vision imaging scanning system and thesoftware algorithm of 20 years industry experience, it achieves to collect theprecise trajectory, apply to all kinds of outsole to be sprayed evenly, reduce thechemical intake to worker and the dependence on skilled labor: Environmentalprotection, relieve labor shortage pressure, improve the efficiency and qualityThe specially made belt is not easy to pollute and clean easily, will not cause thesecondary pollution to outsole so as to cut down the furtherlabor cost.

Parameter

Model:DY-819
Output:100-300prs/h
Robot:FANUC、ABB
Dimension:L3600*W1470*H2200mm
Accuracy:+/-0.5mm
Voltage:220/380V 50/60Hz  3Kw
Airpressure:0.6MPA
Configuration:15inch touch screen
