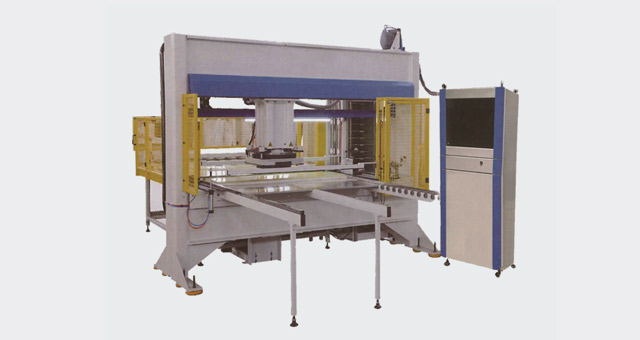

USE AND CHARACTER

This machine is suitable for continuous punching of various non-metallic roll and sheet materials using forming knifemolds, and can be applied to industries such as clothing, shoes and hats, medical equipment, cultural goods, sportsgoods,etc.
The machine is controlled by an upper computer and has functions such as knife imitation, electronic graphic input,automatic typesetting, and display on the screen. it can accurately control the X, Y, 2 β Four directions of movement,the punch automatically cuts according to the layout position.Specially designed oil system with high pressure. Utilizing flywheel energy storage to save energy. The fastest punchingfrequency can reach 50 times/minute.The machine is equipped with a knife mold library (standard with 10 knives, which can be increased or decreasedaccording to demand), automatically replacing different specifcations of knife molds and extracting materials.The machine has automatic barcode recognition function, which automatically identifes the knife mold according tocomputer instructions to prevent errors.
The machine has a memory function and can store multiple working modes, The machine adoots a rodless cylinder tocontrol the entry and exit of the tool mold, ensuring smooth and fast operation.The machine adopts a sliding plate feeding mechanism with automatic circulation and laying function, which can cutvery thin and soft roll like materials or slice like materials.Adopting servo motor drive, precise feeding position; Adopting servo motor drive and ball screw drive to ensureaccurate punch positioning;
Adopting a servo motor to rotate the punch ensures accurate punching position; Using a servo motor to control theposition of the tool mold in the tool magazine, with efhciency
High and accurate positioning.The machine is equipped with a protective net around it, and a safety light curtain is installed at the discharge portwhich improves the safety of the machine.

Special specifcations can be customized.

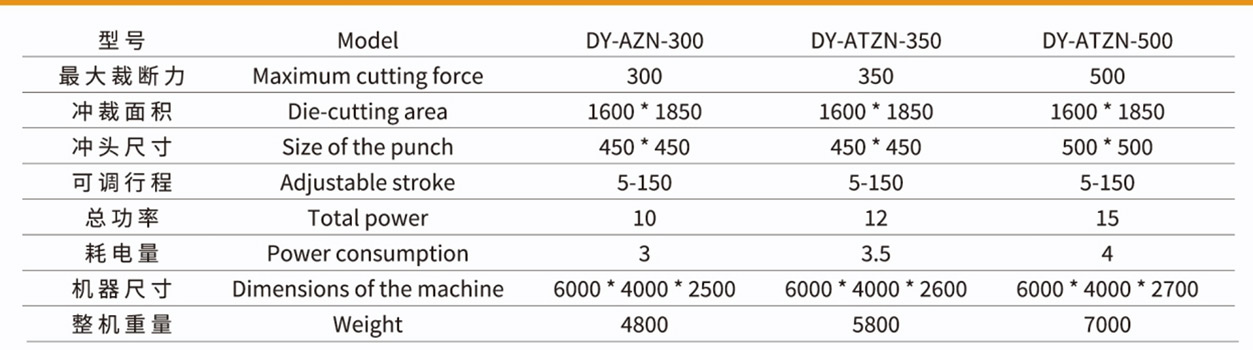

TECHNICAL SPECIFCATION
