CHARATERS
The freezing system adopts closed non freezing liquid circulation cooling,toe forming speed, and the effect of uniformdistribution of cold molded shoes,it makes the setting effect more stable.This machine is equipped with hydraulic and pneumatic positioning system, adjustable velocity, accurately calculate thedrop stroke, make toe side wall height, simplifed setting technique, the toe shape unanimous, a more perfect qualitly.There is a steam system in the hot mould of the machine, which makes the shaping rate of the genuine leather shoes low,and the heating speed is faster than that of the general steam system.The thermal mold is provided with a positioning adjustment, adjustable upper thickness, adapt to all kinds of shoes and

shoe won't crushThe special structure of this machine (drop down location) has high stability and does not cause the strut to loosen

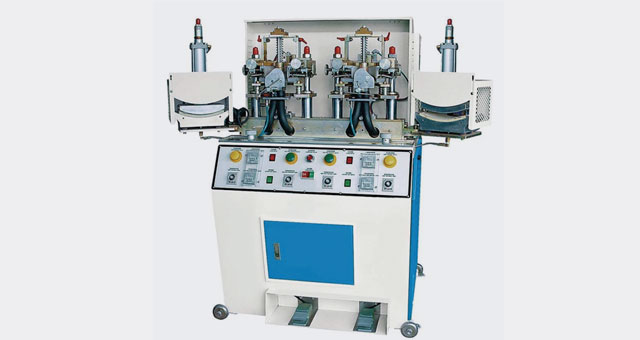

Model:DY-6226
Mechanical dimension:1520x860x1460mm
Packing size:1620x960x1660mm
Net weight:460kgs
Gross weight:500kgs
Power:3kw
Output:2000pairs/8hours
