Equipment features

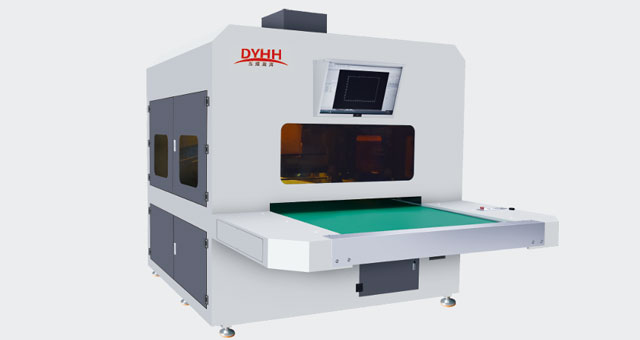

The automatic leather visual line drawing machine is an intelligent equipment developed by our company for the shoe upper linedrawing process in the shoe factory, which replaces the traditional shoe-making process such as manual line drawing and screenprinting. There are many disadvantages of manual line drawing: high labor cost, low work efficiency,low line drawing accuracyhigh cost of consumables, etc. Some special materials cannot even be marked with stroke lines, Screen printing also has manyshortcomings: the efficiency of screen printing is not high, the screen consumables are huge,the labor cost is high, and the inkcan causeenvironmentalpollution.

The automatic leather visual line drawing machine is specially designed for the disadvantages of traditional manual line drawingand screen printing, with high work eficiency. The use of high-definition industrial cameras combined with the world's leadingcamera positioning image recognition system, 360 * automatic rotation positioning, large-format one-time imaging, automaticidentification of material contours, precise positioning of line drawing graphics. With an automatic loading and unloading deviceworkers only need to place the cut uppers in the machine at will, and the image recognition system can automatically, quickly andaccuratelylocate and execute the task of drawing lines.

MORE ACCURATE AND FASTER

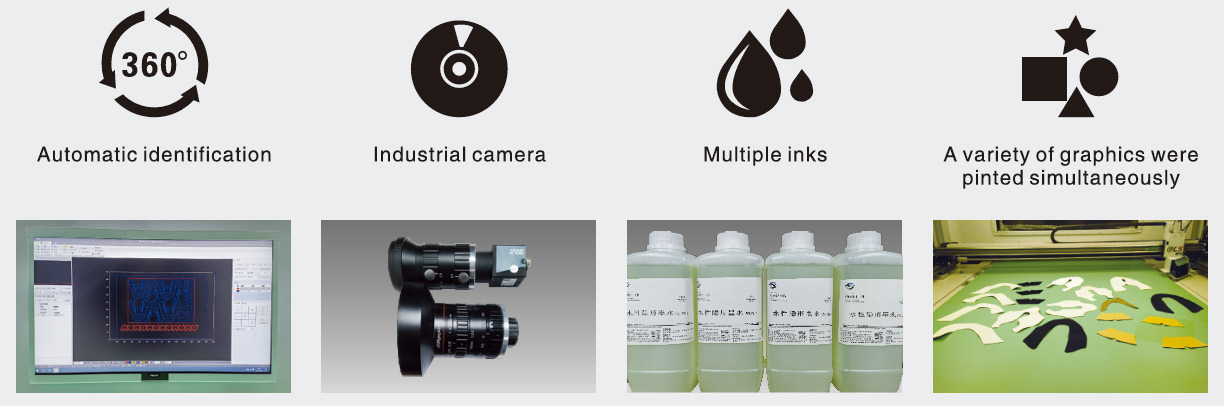

More than 10 kinds of graphics can be identified by camerasystem and painted by auto inkjet system at the same time.
The position of the vamp that needs to be painted is optional.Becausethe camera system can identify objects automatically in 360 degrees
The usage ofmachinereduce 3-5 workers
Low cost low accident work injury rate and management cost.

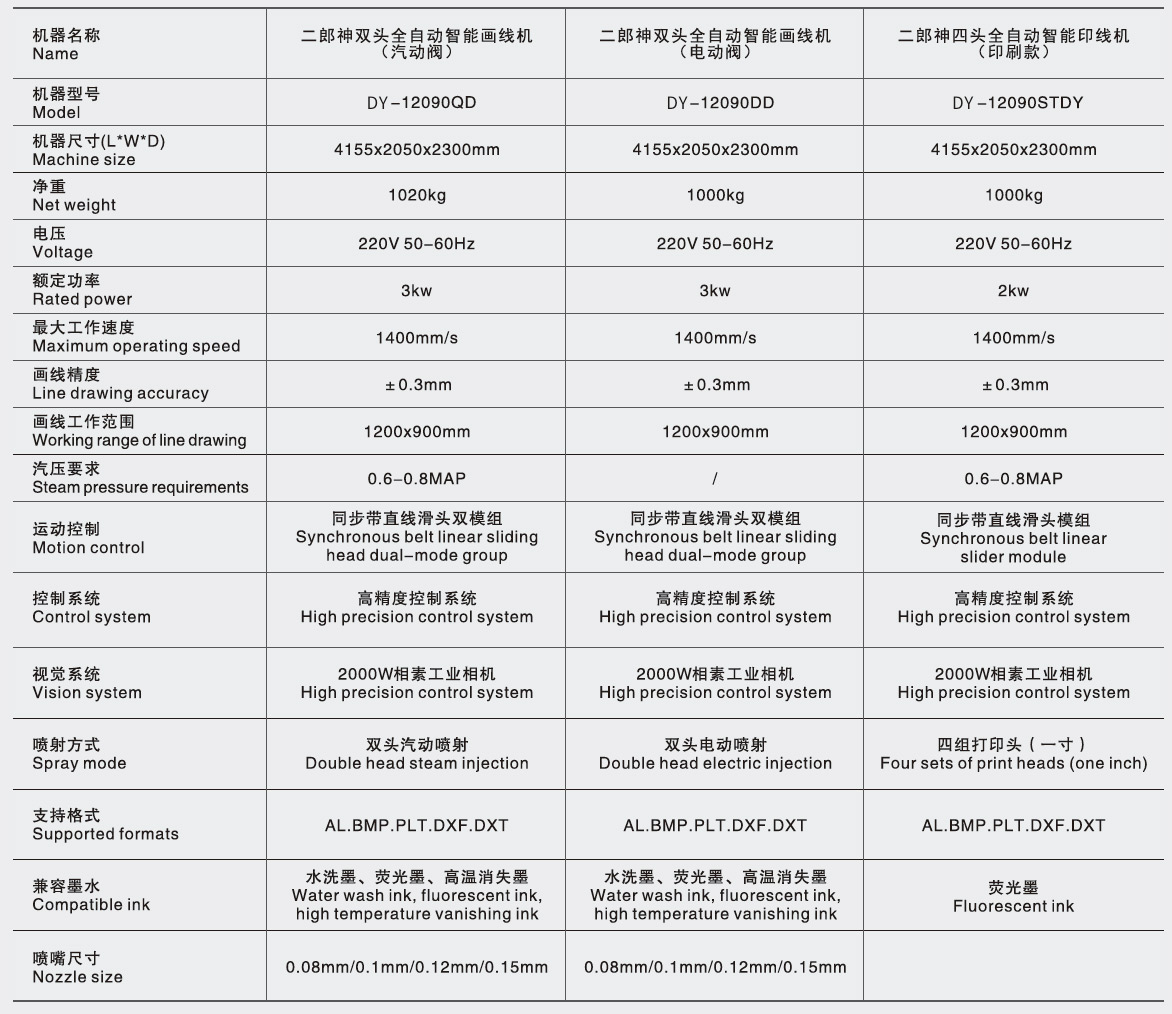

Main technical parameters
